Shenzhen Zhongpu Electronic Co., Ltd
 |
| H07RN-F: | |
|---|---|
| Quantity: | |
H07RN-F2C 3C 4C

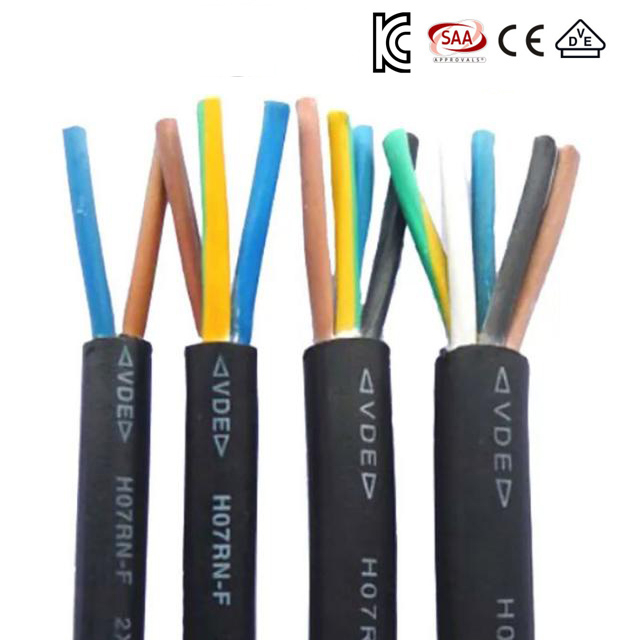

H07RN-F, Rubber Insulated Sheathed Flexible Power Cables
Standard: DIN EN 50525-2-82 (VDE 0285-525-2-82):2012-01; EN 50525-2-82:2011, AS/NZS 60245.4
Approvals (Certified): VDE, TUV, KC, SAA
Electrical Voltage: 300V/500V
Tem
perature: 60°C
No. of Cores: 1 cores, 2 cores, 3 cores
Outer Jacket Material: Rubber
Copper Conductor Material: Oxygen free Copper (OFCU)
Country of Origin: Made In China
Color: Black/White is normal, but any color available
Length: Any length available
Environmental Certifications: RoHS, REACH, PAHs
Testing: Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
Samples: Free
| Nominal section(mm2) | No./dia. of core(mm) | Average dia.(mm) | Reference weight(kg/km) | Conductor resistance at 20℃(Ω/km) |
|---|---|---|---|---|
| H07RN-F 2*1.5 | 30/0.25 | 9.3 | 13.3 | 12.1 |
| H07RN-F 3*1.5 | 30/0.25 | 10.3 | 13.3 | 7.41 |
| H07RN-F 3*2.5 | 49/0.25 | 11.8 | 7.09 | 4.61 |
| H07RN-F 3*4.0 | 56/0.30 | 13.5 | 4.95 | 3.08 |
| H07RN-F 3*6.0 | 84/0.30 | 15.4 | 3.3 | 1.83 |
| H07RN-F 4*4.0 | 56/0.30 | 15.2 | 4.95 | 1.15 |
| H07RN-F 5*4.0 | 56/0.30 | 16.9 | 4.95 | 0.727 |
vailable Opposite End Connectors and Related Products
Power Cord Plugs Manufacturer, Sets us apart
We Can Confirm Various Requirements For Power Cord, Plug, Rated Voltage, Rated Current, Length Of Power Cord, Cables Specifications, End Terminals, Wires Color, Packaging, Shipment, And Pricing Of Power Cord Plugs For You At Any Time.
We are qualified supplier for you.
* Samples: Free.
* Wire Core: Oxygen free pure copper.
* Outer Jacket Material: PVC, Rubber, Halogen-Free, Textile braid.
* Packing: Standard Export Carton.
* Shipment: LCL, Container, Sea and Air Transport.
Power Cord Plugs Are Widely Used
IPowerCable also specializes in customizing OEM power cords, plugs, connectors, wire harness, S/R, sockets, and other special request for customers. We can developing open any new mold tooling according the samples and based drawings. It can effectively avoid the uniqueness of Power Cord plugs to meet the OEM power cord plug requirements of various electronic appliances flexibly. We have the ability to apply for new safety certificates and environmental reports for new OEM products.
